menclose1

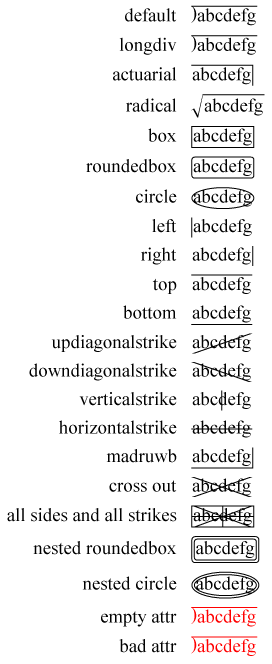

Panorama of menclosed effects. Note that 'madruwb' has various renderings. The 'empty attr' case is an error, but displaying the default 'sqrt' rendering is not required. The list of attrs is open-ended, so technically the 'bad attr' case is not an error, and so does not have to display as red. However, it is unlikely other renders will display a triangle so flagging this as an error might be helpful. As with 'missing attr', displaying the default 'sqrt' rendering is not required.

W3C sample

WIRIS

$\begin{array}{rl}\text{default}& \overline{)\mathrm{abcdefg}}\\ \text{longdiv}& \overline{)\mathrm{abcdefg}}\\ \text{actuarial}& \overline{)\mathrm{abcdefg}}\\ \text{radical}& \sqrt{\mathrm{abcdefg}}\\ \text{box}& \boxed{\mathrm{abcdefg}}\\ \text{roundedbox}& \boxed{\mathrm{abcdefg}}\\ \text{circle}& \overline{)\mathrm{abcdefg}}\\ \text{left}& \overline{)\mathrm{abcdefg}}\\ \text{right}& \overline{)\mathrm{abcdefg}}\\ \text{top}& \overline{\mathrm{abcdefg}}\\ \text{bottom}& \underline{\mathrm{abcdefg}}\\ \text{updiagonalstrike}& \cancel{\mathrm{abcdefg}}\\ \text{downdiagonalstrike}& \bcancel{\mathrm{abcdefg}}\\ \text{verticalstrike}& \overline{)\mathrm{abcdefg}}\\ \text{horizontalstrike}& \sout{\mathrm{abcdefg}}\\ \text{madruwb}& \overline{)\mathrm{abcdefg}}\\ \text{cross out}& \xcancel{\mathrm{abcdefg}}\\ \text{all sides and all strikes}& \xcancel{\mathrm{abcdefg}}\\ \text{nested roundedbox}& \boxed{\boxed{\mathrm{abcdefg}}}\\ \text{nested circle}& \overline{)\overline{)\mathrm{abcdefg}}}\\ \text{empty attr}& \overline{)\mathrm{abcdefg}}\\ \text{bad attr}& \overline{)\mathrm{abcdefg}}\end{array}$

<math xmlns="http://www.w3.org/1998/Math/MathML">
  <mtable columnalign="right left">
    <mtr>
      <mtd>
        <mtext>default</mtext>
      </mtd>
      <mtd>
        <menclose>
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>longdiv</mtext>
      </mtd>
      <mtd>
        <menclose notation="longdiv">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>actuarial</mtext>
      </mtd>
      <mtd>
        <menclose notation="actuarial ">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>radical</mtext>
      </mtd>
      <mtd>
        <menclose notation="radical">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>box</mtext>
      </mtd>
      <mtd>
        <menclose notation="box">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>roundedbox</mtext>
      </mtd>
      <mtd>
        <menclose notation="roundedbox">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>circle</mtext>
      </mtd>
      <mtd>
        <menclose notation="circle">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>left</mtext>
      </mtd>
      <mtd>
        <menclose notation="left">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>right</mtext>
      </mtd>
      <mtd>
        <menclose notation="right">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>top</mtext>
      </mtd>
      <mtd>
        <menclose notation="top">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>bottom</mtext>
      </mtd>
      <mtd>
        <menclose notation="bottom">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>updiagonalstrike</mtext>
      </mtd>
      <mtd>
        <menclose notation="updiagonalstrike">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>downdiagonalstrike</mtext>
      </mtd>
      <mtd>
        <menclose notation="downdiagonalstrike">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>verticalstrike</mtext>
      </mtd>
      <mtd>
        <menclose notation="verticalstrike">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>horizontalstrike</mtext>
      </mtd>
      <mtd>
        <menclose notation="horizontalstrike">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>madruwb</mtext>
      </mtd>
      <mtd>
        <menclose notation="madruwb">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>cross out</mtext>
      </mtd>
      <mtd>
        <menclose notation="updiagonalstrike downdiagonalstrike">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>all sides and all strikes</mtext>
      </mtd>
      <mtd>
        <menclose notation="left right top bottom updiagonalstrike downdiagonalstrike verticalstrike horizontalstrike">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>nested roundedbox</mtext>
      </mtd>
      <mtd>
        <menclose notation="roundedbox">
          <menclose notation="roundedbox">
            <mi>abcdefg</mi>
          </menclose>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>nested circle</mtext>
      </mtd>
      <mtd>
        <menclose notation="circle">
          <menclose notation="circle">
            <mi>abcdefg</mi>
          </menclose>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>empty attr</mtext>
      </mtd>
      <mtd>
        <menclose notation="">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
    <mtr>
      <mtd>
        <mtext>bad attr</mtext>
      </mtd>
      <mtd>
        <menclose notation="triangle">
          <mi>abcdefg</mi>
        </menclose>
      </mtd>
    </mtr>
  </mtable>
</math>

Author: Neil Soiffler, Design Science Inc.
